Rheology Center

Location: LRSM Building
Supervisor/Coordinator: Paul A. Janmey, Karen I. Winey, Paulo Arratia and Arjun G. Yodh


TA Instruments RFS II

TA Instruments RFS IIFaculty advisor: Paul A. Janmey This facility is capable of characterizing both the structure and flow properties of simple and complex fluids. It can solve the most demanding fluid rheology problems including dynamic oscillatory and shear rate controlled measurements on low viscosity structured fluids. It is equipped with:

  • Peltier plate temperature control (from -30oC to 150 oC)
  • Recirculating fluid bath (from -10 oC to 140 oC)
  • Forced convection oven
  • Torque ranges from 0.002 to 1000 g.cm
  • Frequency ranges from 10-5 to 500 rad/sec

Bohlin Gemini

Bohlin GeminiFaculty advisor: Arjun G. Yodh, facility contact: Somayeh Farhadi
The Bohlin Gemini rheometer is optimized for both stress controlled and strain controlled measurements. Technical features include a broad torque range, which extends to 200 mNm. The high-resolution torque mapping system applied to Bohlin’s low bias air bearing technology allows low torques to be set extremely accurately. The Bohlin is ideal for stress or strain controlled measurements of viscoelastic fluids with shear modulus as low as 1mPa. Couple with Nikon Eclipse 200/Confocal VT Eye microscopy for in-situ imaging during shearing (see details below)

Haake CaBER

Haake CaBERFaculty advisor: Arjun G. Yodh, facility contact: Somayeh Farhadi
The Haake CaBer (capillary break-up extensional rheometer) provides valuable information about a material’s extensional properties that rotational rheometers cannot provide. With the CaBER, stringiness, filaments break-up time and extensional viscosity can be quantified.

Nikon Eclipse 200/Confocal VT Eye

Faculty advisor: Arjun G. Yodh, facility contact: Somayeh Farhadi

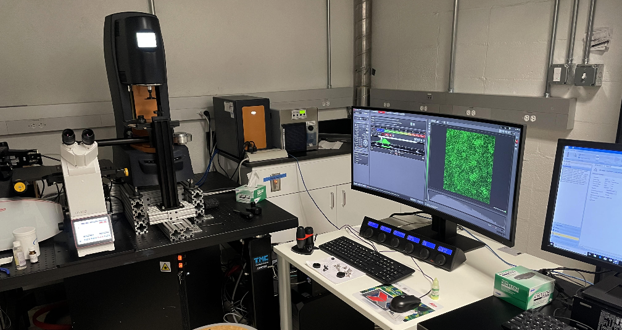

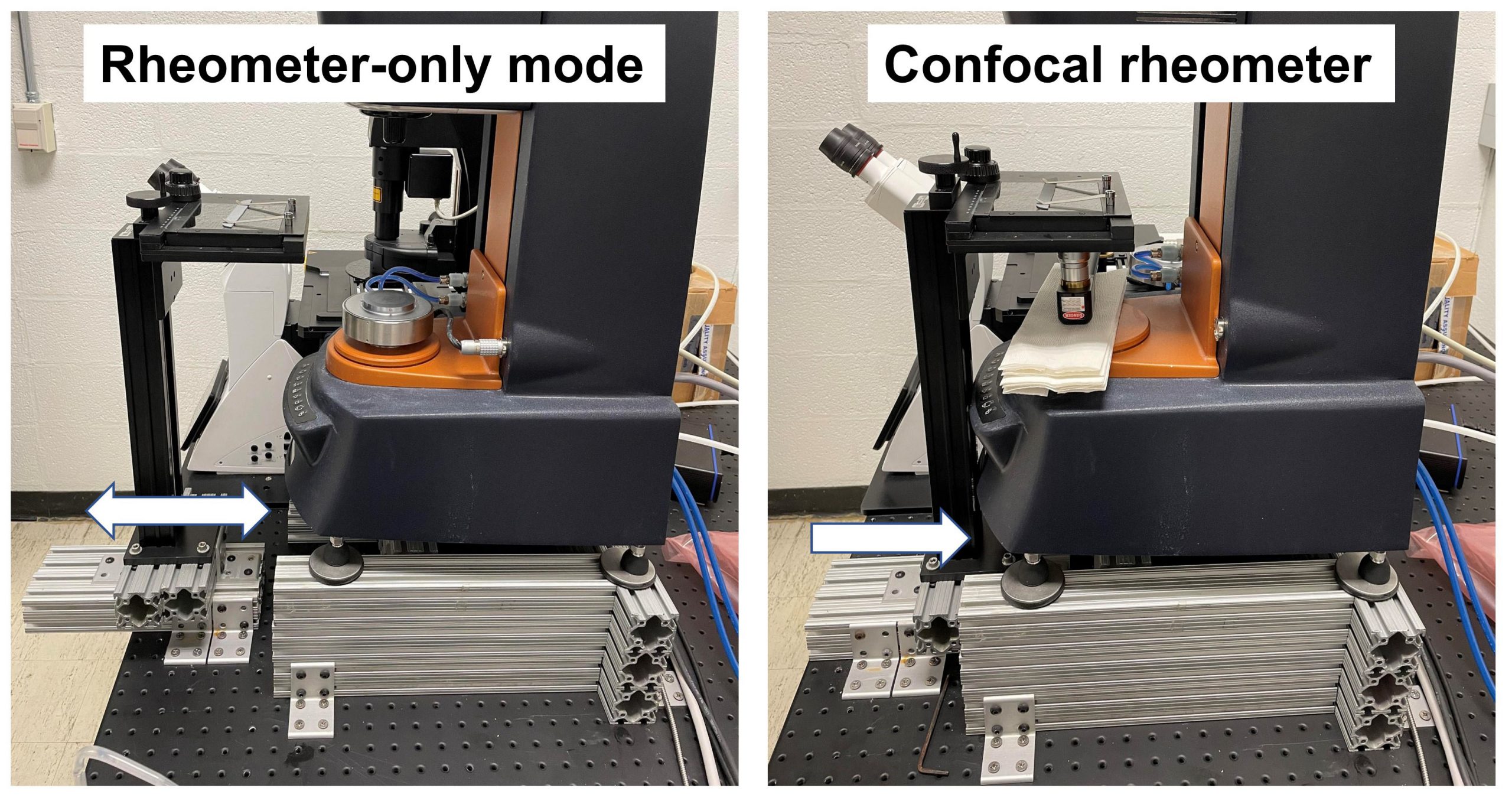

Inverted light microscope, capable of fluorescence microscopy. This microscope is attached to a VisiTech ‘VT-Eye’ confocal setup, and Bohlin Gemini rheometer. VisiTech ‘VT-Eye’

  • 30 images per second (512 x 512 pixels); up to 400 images/s for reduced field of view
  • Ultra-fast 3D acquisition: 256 x 256 x 100 pixel 3D image, 1 per second
  • Z-scan up to 100 microns with 100 nm resolution
  • Multi- wavelength excitation laser, at 488, 569 and 633 nm
  • Reflection mode capability
  • VoxCell software for easy control and data management

Instron Model 5564 Table Mounted Materials Testing System

Instron Model 5564 Table Mounted Materials Testing SystemFaculty advisor: Karen I. Winey This facility is capable of performing tensile, compression, peel, and flexural tests on most materials and components. It is equipped with:

  • 2 tension/compression load cells with capacity of 2kN and 10N, respectively.
  • 1 rigid coupling.
  • 1 micro 3-point bend fixture.
  • 2 stainless steel tensile grips with 100lb capacity.
  • 1 double-walled saline immersion vessel with digital temperature controller.
